Urbanfil® - Tilemate (shallow pan access covers)
A range of standard depth steel recessed cover & frame systems for use with tiles, concrete and epoxy floors
Tilemate is available in single part, 2 part, 3 part, trench run and multipart configurations up to class B80kN (AS 3996).
The range comprises square and rectangular infill access covers manufactured from hot dip galvanised steel. The steel base is fitted with reinforcing bars to provide flexural strength with concrete poured in situ.
Brass & stainless edging are options for aesthetic applications
Important note: To accommodate tiles, covers have an overall pan depth of 85mm (and 70mm at the frame edge). However as concrete is integral to the strength of the cover, pavers need to be bedded with concrete to a minimum depth of 45mm.
Features & benefits
 | 4 High tensile steel M16 recessed socketed locking bolts per cover with plastic cap to protect from dirt ingress. |  | 12mm reinforcing bars on class B covers |
 | Optional brass decorative edge |  | Cover depth allows for sufficient bedding concrete. |
 | Solid base cover for easy installation of infill materials |  | Polyethylene seal provides a water and gas seal without the need for grease. |
 | Angled 2mm thick galvanised steel angle frame allows cover removal in all 4 directions |  | Concrete anchors on all frames provide excellent fixing into surrounding concrete |
Parts list
| Type | Part No. | C/O1 WxL (mm) |
O/A1 WxL (mm) |
O/A1 Depth (mm) |
Cover Wgt (kg) |
O/A1 Wgt (kg) |
Decorative Edging2 |
Locking Option3 |
JPG |

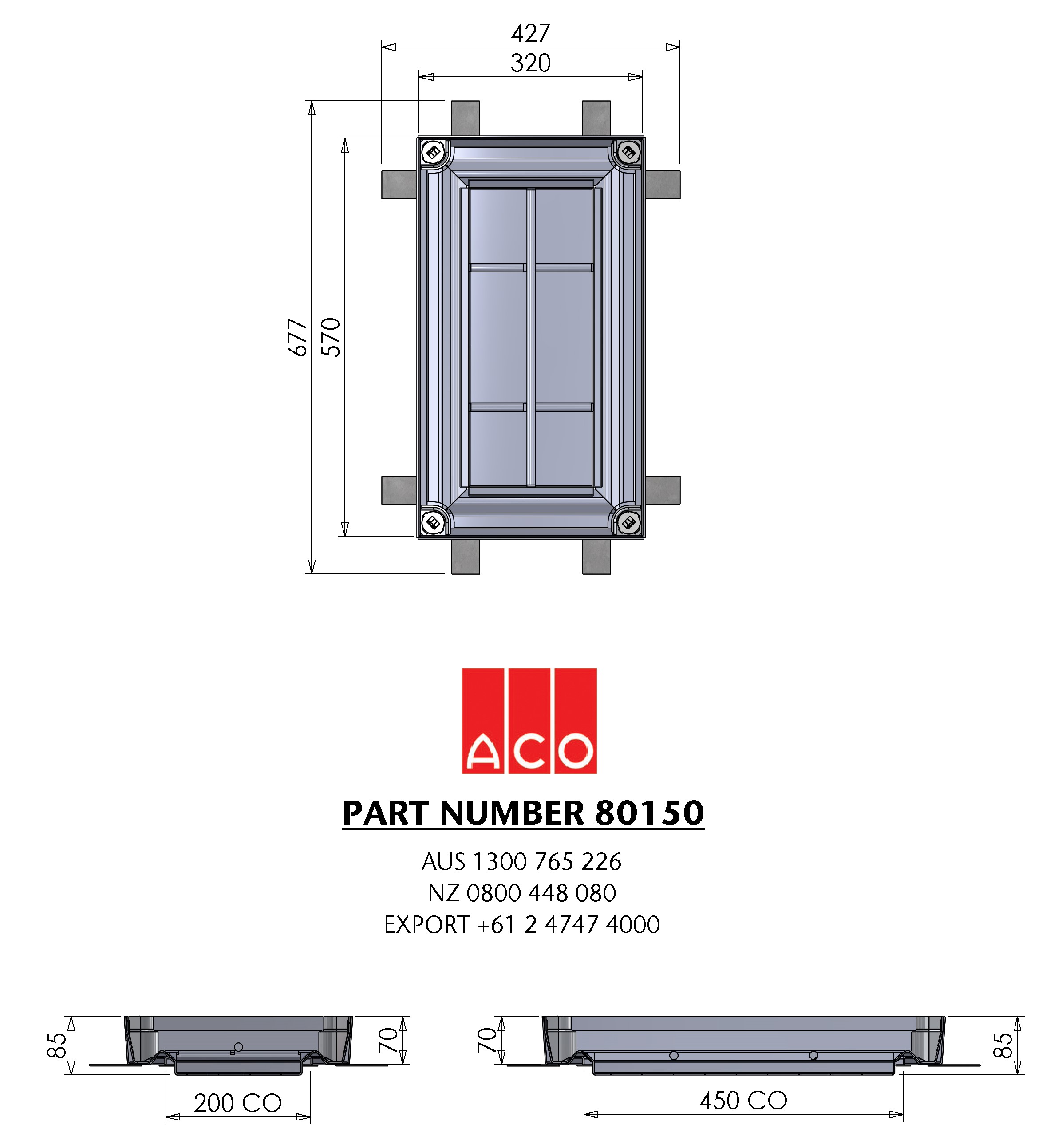

| GS24C | 80150 | 200x450 | 330x580 | 85 | 8.0 | 13.0 | BE | BB |  |
| GS33C | 81686 | 300x300 | 430x430 | 85 | 7.1 | 11.9 | BE | BB |  |

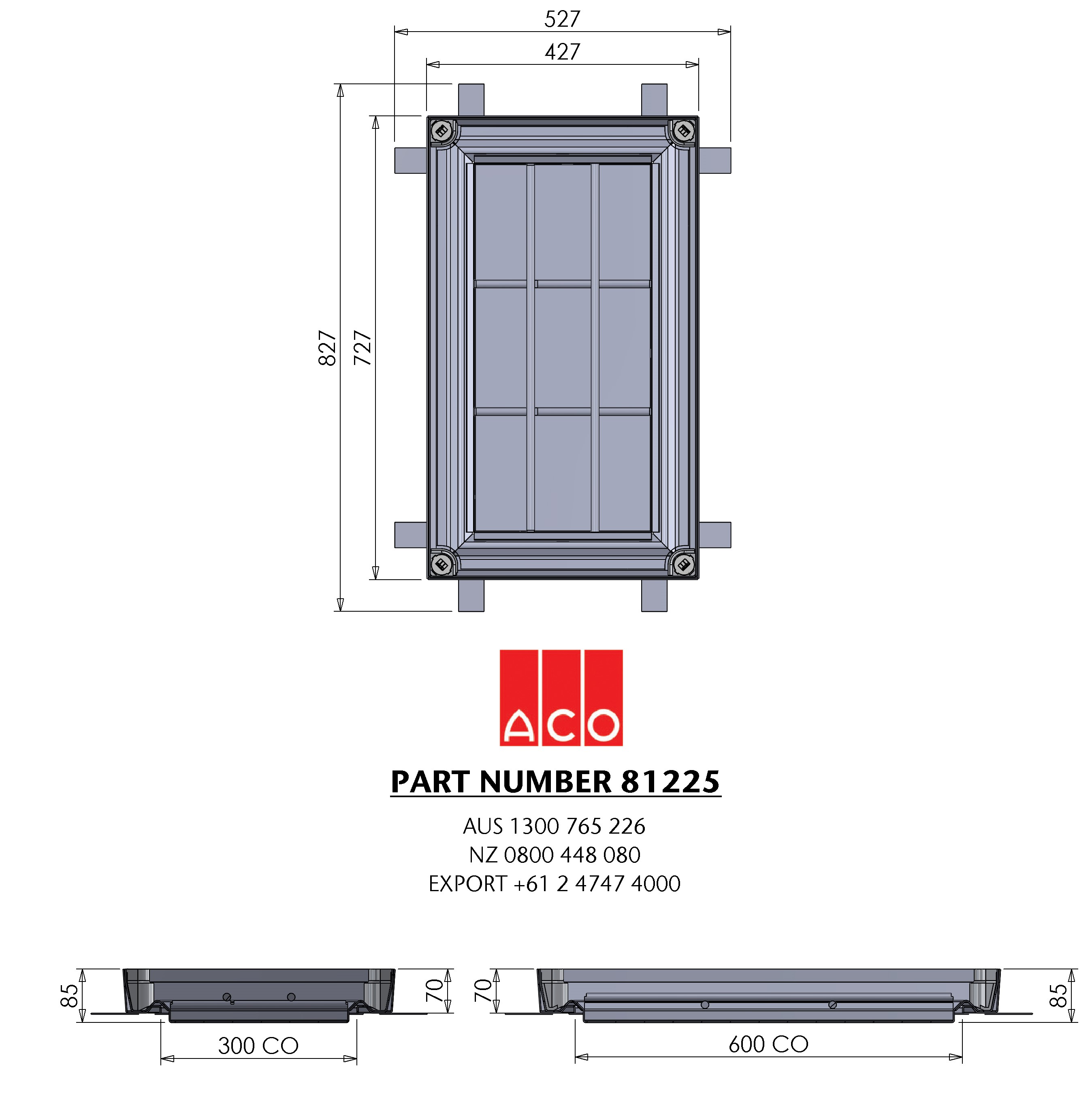

| GS36C | 81225 | 300x600 | 430x730 | 85 | 11.0 | 16.0 | BE | BB |  |

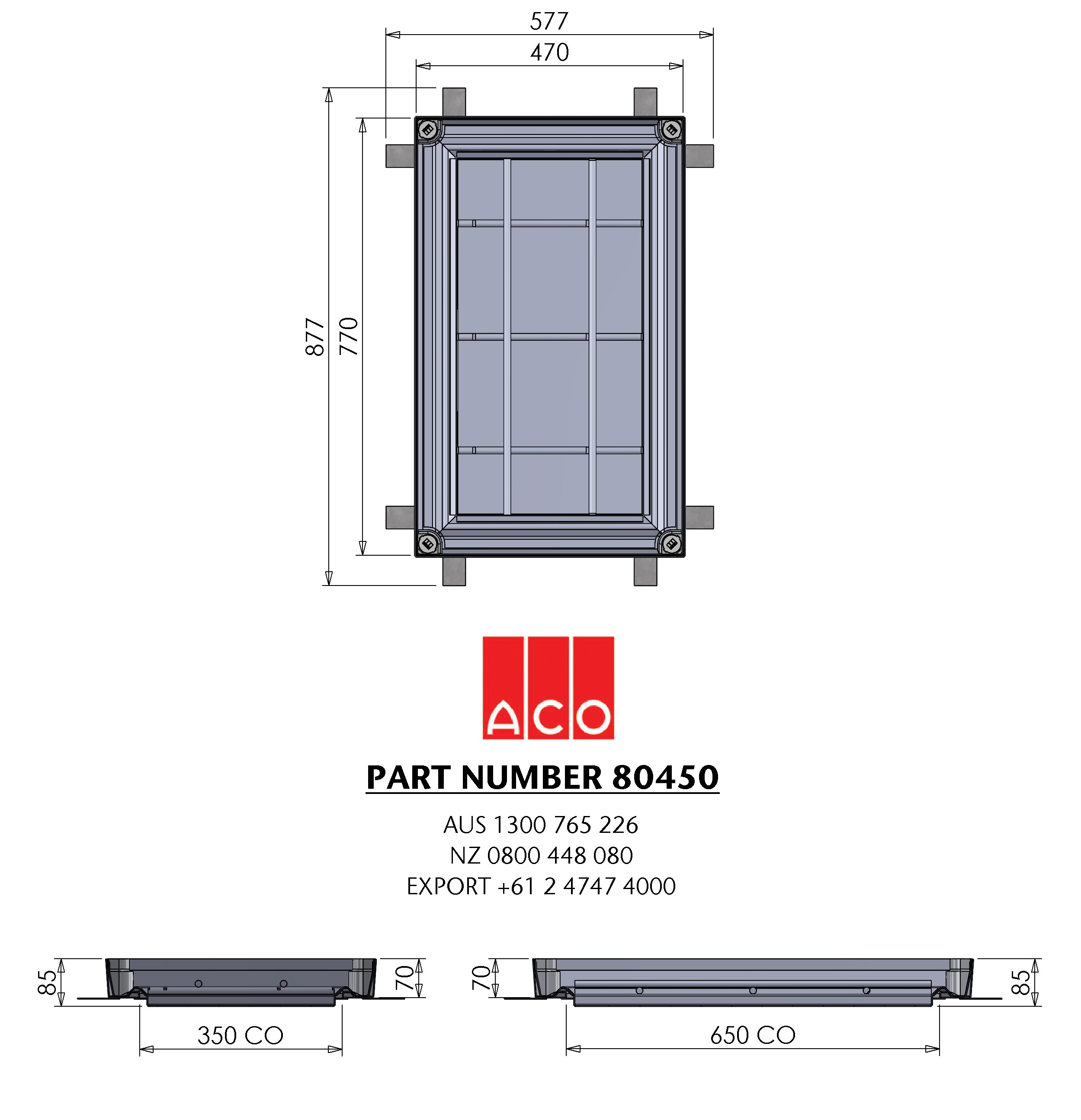

| GS365C | 80450 | 350x650 | 480x780 | 85 | 11.0 | 16.0 | BE | BB |  |
| GS44C | 81520 | 450x450 | 580x580 | 85 | 10.7 | 16.8 | BE | BB |  |
| GS46C | 81547 | 450x600 | 580x730 | 85 | 13.2 | 19.9 | BE | BB |  |
| GS66C | 81565 | 600x600 | 730x730 | 85 | 15.7 | 23.0 | BE | BB |  |
| GS67C | 81586 | 600x750 | 730x880 | 85 | 18.6 | 26.7 | BE | BB |  |
| GS69C | 82018 | 600x900 | 730x1030 | 85 | 20.9 | 29.6 | BE | BB |  |
| GS77C | 81601 | 750x750 | 880x880 | 85 | 21.5 | 30.2 | BE | BB |  |
| GS94C | 81661 | 900x450 | 1030x580 | 85 | 17.6 | 25.7 | BE | BB |  |
| GS99C | 81645 | 900x900 | 1030x1030 | 85 | 27.6 | 37.5 | BE | BB |  |
1. C/O = Clear opening O/A = Overall
2. Decorative Brass (BE) can be added - just specify BE. Stainless Steel covers are also available contact ACO
3. Optional security locking bolts are available for security applications - specify Barri bolts (BB) after part no.
| Part No | Weight (kg) | JPG | |
|---|---|---|---|
| Universal short lifting key | 84306 | 0.40 |  |
| Urbanfil®/Pavermate®: allen locking key | 84313 | 0.25 |  |
Features & benefits
| 4 High tensile steel M16 recessed socketed locking bolts per cover with plastic cap to protect from dirt ingress. | | Covers do not need to be the same length, if widths are the same, any standard covers can be combined to create 2 – part units |
| 12mm reinforcing bars on class B covers. | | Optional brass decorative edge around frame and cover edges. |
| Covers do not need to be the same length, if widths are the same, any standard covers can be combined to create 2 – part units | | 2mm thick galvanised steel angle frame to fit around both covers with removable cross bar to support covers and provide a seal and locking bar for centre corners, also acts as a guide for correct positioning. Covers are removable in all 4 directions |
| Cover depth allows for sufficient bedding concrete. | | Solid base cover for easy installation of infill materials |
 | Concrete anchors on all frames provide excellent fixing into surrounding concrete |
Parts list
| Type | Part No. | C/O1 WxL (mm) |
O/A1 WxL (mm) |
O/A1 Depth (mm) |
Cover Wgt (kg) |
O/A1 Wgt (kg) |
Decorative Edging2 |
Locking Option3 |
JPG |
| GS2410C | 82521 | 450x1020 | 580x1150 | 85 | 7.1/7.1 | 33.0 | BE | BB |  |
| GS2411C | 82540 | 450x1170 | 580x1300 | 85 | 7.1/10.7 | 36.1 | BE | BB |  |
| GS2413C | 82567 | 450x1320 | 580x1450 | 85 | 13.2/13.2 | 39.2 | BE | BB |  |
| GS2610C | 82585 | 600x1020 | 730x1150 | 85 | 13.2/13.2 | 39.2 | BE | BB |  |
| GS2611C | 82606 | 600x1170 | 730x1300 | 85 | 13.2/15.7 | 39.9 | BE | BB |  |
| GS2613C | 82628 | 600x1320 | 730x1450 | 85 | 15.7/15.7 | 45.5 | BE | BB |  |
| GS2614C | 82640 | 600x1470 | 730x1600 | 85 | 15.7/18.6 | 49.1 | BE | BB |  |
| GS2616C | 82665 | 600x1620 | 730x1750 | 85 | 18.6/18.6 | 52.0 | BE | BB |  |
| GS2617C | 82681 | 600x1770 | 730x1900 | 85 | 18.6/20.9 | 55.6 | BE | BB |  |
| GS2619C | 82706 | 600x1920 | 730x2050 | 85 | 20.9/20.9 | 58.6 | BE | BB |  |
| GS2713C | 82724 | 750x1320 | 880x1450 | 85 | 18.6/18.6 | 52.7 | BE | BB |  |
| GS2714C | 82745 | 750x1470 | 880x1600 | 85 | 18.6/21.6 | 56.3 | BE | BB |  |
| GS2716C | 82762 | 750x1620 | 880x1750 | 85 | 21.6/21.6 | 59.9 | BE | BB |  |
| GS2913C | 82783 | 900x1320 | 1030x1450 | 85 | 20.9/20.9 | 58.7 | BE | BB |  |
1. C/O = Clear opening O/A = Overall
2. Decorative Brass (BE) can be added - just specify BE. Stainless Steel covers are also available contact ACO
3. Optional security locking bolts are available for security applications - specify Barri bolts (BB) after part no.
| Part No | Weight (kg) | JPG | |
|---|---|---|---|
| Universal short lifting key | 84306 | 0.40 | |
| Urbanfil®/Pavermate®: allen locking key | 84313 | 0.25 | |
Due to the number of removable components including beams and individual covers, multipart access covers by their very design cannot be made water tight. This is why AS 3996-2006: Access covers and grates excludes large access cover systems from its scope. AS 3996-2006 requires compliance in a number of areas including gas and water tightness. ACO multipart covers are suitable for applications requiring general weather resistance on well drained enclosures. A reasonable degree of weather resistance can be achieved by sealing edges of covers, frame interfaces and lifting holes each time the cover is removed for servicing.
For applications requiring frequent access, ACO’s Servokat Assist lift covers are recommended.
Features & benefits
| Covers do not need to be of the same length, provided each row has covers of the same width. | | Decorative edging can be attached around each cover and outside frame. |
| Removable cross bar at joints to support covers and provide a seal and locking bar for centre corners. | | Frame fits around all covers and a removable frame support beam is used between rows |
| Beam locating boxes must be cast with the pit structure |
Parts list
| Type | Part No. | C/O1 WxL (mm) |
No Parts | Cover WxL |
Load Bearing Beams Req. | Decorative Edging2 | Locking Option3 | JPG |
| GSMP1010B | 83777 | 1020x1020 | 4-Part | 2x2 | 1 x 150mm UC | BE | BB | - |
| GSMP1313B | 83782 | 1320x1320 | 4-Part | 2x2 | 1 x 150mm UC | BE | BB | - |
| GSMP1515B | 83798 | 1590x1590 | 9-Part | 3x3 | 2 x 150mm UC | BE | BB | - |
| GSMP1521B | 83803 | 1590x2160 | 12-P | 3x4 | 2 x 150mm UC | BE | BB | - |
| GSMP1624B | 83810 | 1620x2490 | 6-Part | 2x3 | 1 x 250mm UB | BE | BB | - |
| GSMP2020B | 83824 | 2040x2040 | 9-Part | 3x3 | 2 x 150mm UC | BE | BB | - |
| GSMP2424B | 83831 | 2490x2490 | 9-Part | 3x3 | 2 x 250mm UB | BE | BB | - |
1. C/O = Clear opening O/A = Overall
2. Decorative Brass (BE) can be added - just specify BE. Stainless Steel covers are also available contact ACO
3. Optional security locking bolts are available for security applications - specify Barri bolts (BB) after part no
| Part No | Weight (kg) | JPG | |
|---|---|---|---|
| Universal short lifting key | 84306 | 0.40 | |
| Urbanfil®/Pavermate®: allen locking key | 84313 | 0.25 | |
Due to the number of removable components including beams and individual covers, multipart access covers by their very design cannot be made water tight. This is why AS 3996-2006: Access covers and grates excludes large access cover systems from its scope. AS 3996-2006 requires compliance in a number of areas including gas and water tightness. ACO multipart covers are suitable for applications requiring general weather resistance on well drained enclosures. A reasonable degree of weather resistance can be achieved by sealing edges of covers, frame interfaces and lifting holes each time the cover is removed for servicing.
For applications requiring frequent access, ACO’s Servokat Assist lift covers are recommended.
